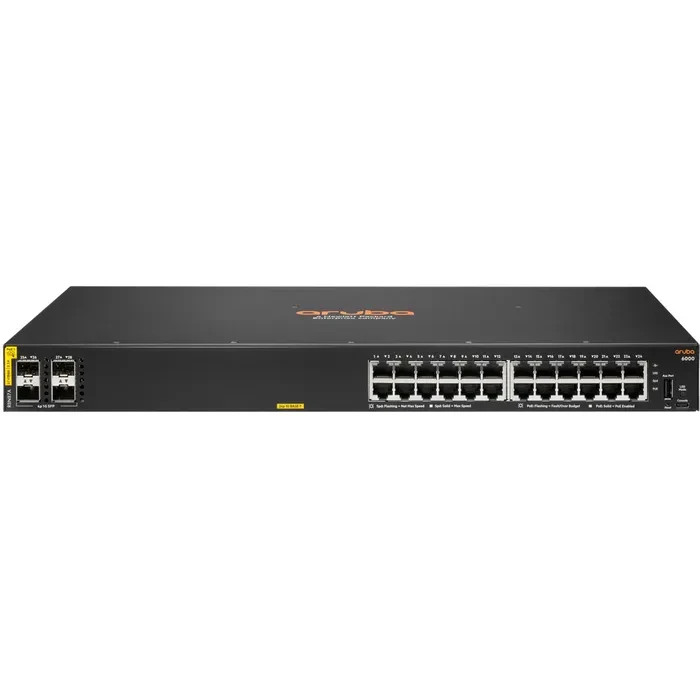

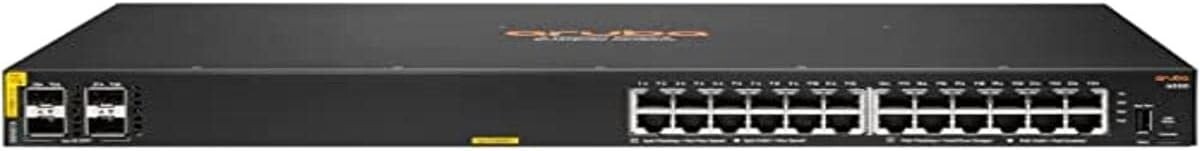

HPE Aruba 6000 24G 4SFP Netzwerk-Switch (R8N87A#ABB)
€ 1122.00
HPE NETWORKING CX6000 SWITCH 24-PORT 1GBASE-T 4-PORT 1G SFP 370W CLASS 4 POE
RACKMOUNTABLE LAYER 2 MANAGED R8N87A#ABB
• Max. power (without PoE): 32.7 W Maximum power (with PoE): 455 W
• 24x 10/100/1000BASE-T ports 4x 1G SFP ports
• Dual Core ARM Cortex A9 @ 1016 MHz 8 GB DDR3 maximum, depending on model, 16 GB eMMC
• 370 W Class 4 PoE/PoE+
• HPE Aruba Limited Lifetime Warranty DETAILS AND SPECIFICATIONS FOR THE ARUBA CX 6000 SERIES SPECIFICATIONS
• Performance
• System switching capacity: Up to 104 Gbit/s
• System throughput capacity: Up to 77.3 Mpps Models
• Aruba 6000 48G Class4 PoE 4SFP 370W Switch (R8N85A)
• 48x ports 10/100/1000Base-T ports
• 4x 1G SFP ports
• Internal (fixed) power supply, fixed fans
• Up to 370 W Class 4 PoE
• Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 30.48 cm (1.73" x 17.4" x 12.0")
• Weight: 5.02 kg (11.07 lbs)
• Aruba 6000 48G 4SFP Switch (R8N86A)
• 48x ports 10/100/1000Base-T ports
• 4x 10G SFP ports
• Internal (fixed) power supply, fixed fans
• Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 24.74 cm (1.73" x 17.4" x 9.74")
• Weight: 3.42 kg (7.54 lbs)
• Aruba 6000 24G Class4 PoE 4SFP 370W Switch (R8N87A)
• 24x ports 10/100/1000Base-T ports
• 4x 1G SFP ports
• Internal (fixed) power supply, fixed fans
• Up to 370 W Class 4 PoE
• Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 26.82 cm (1.73" x 17.4" x 10.56")
• Weight: 4.19 kg (9.24 lbs)
• Aruba 6000 24G 4SFP Switch (R8N88A)
• 24x ports 10/100/1000Base-T ports
• 4x 1G SFP ports
• Internal (fixed) power supply, fixed fans
• Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 20.12 cm (1.73" x 17.4" x 7.92")
• Weight: 2.62 kg (5.78 lbs)
• Aruba 6000 12G Class4 PoE 2G/2SFP 139W Switch (R8N89A)
• 12x ports 10/100/1000Base-T ports
• 2x 1G SFP ports
• 2x 1 GbE ports
• Internal (fixed) power supply, fanless
• Up to 139 W Class 4 PoE The Aruba CX 6000 Switch Series is a modern, entry-level line of switches ideal for branch offices and medium and small businesses. Designed for reliable, simple, and secure access, the Aruba CX 6000 Series offers a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. The Aruba CX 6000 Series is built on the Aruba ASIC architecture. The AOS-CX programmable operating system is used across the Aruba CX portfolio, providing a more consistent and efficient user experience. This fully managed series features convenient built-in uplinks with up to 370W Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact, fanless model is ideal for use in quiet, small workspaces. The Aruba CX 6000 Series offers easy deployment and use with flexible management options—you'll always find the ideal configuration for your business and network environment. HPE ARUBA NETWORKING CX 6000 24G CLASS 4 POE 4SFP 370W SWITCH The HPE Aruba Networking CX 6000 Switch Series is a modern, entry-level line of switches ideal for branch offices and medium and small businesses. Designed for reliable, simple, and secure access, the HPE Aruba CX 6000 Series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. The HPE Aruba Networking CX 6000 Switch Series is built on the Aruba ASIC architecture. The AOS-CX programmable operating system is used across the Aruba CX portfolio, providing a more consistent and efficient operator experience. This fully managed series features convenient integrated uplinks with up to 740W Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for deployment in quiet, small workspaces. The HPE Aruba CX 6000 Series offers easy deployment and use with flexible management options – you'll always find the ideal configuration for your business and network environment.
• Dimensions: (H) 4.39 cm x (W) 25.4 cm x (D) 25.5 cm (1.73" x 10.0" x 10.04")
• Weight: 2.78 kg (6.13 lbs) Management ports
• 1x USB-C console port
• 1x USB Type-A host port POE performance
• 370W Class 4: R8N85A, R8N87A
• 139W Class 4: R8N89A Assembly
• Mounts in a 19-inch EIA-standard telco rack or equipment cabinet. Horizontal surface mount only. 2-post rack kit included. Environment
• Operating temperature: 0°C to 45°C (32°F to 113°F) up to 5,000 ft. Derating: -1°C per 1,000 ft from 5,000 ft to 10,000 ft.
• Operating relative humidity: 15% to 95% at 40°C (104°F), non-condensing
• Non-operating: -40°F to 158°F (-40°C to 70°C) up to 15,000 ft.
• Storage relative humidity: 15 to 90% at 65°C (149°F), non-condensing
• Max. operating altitude: 10,000 feet (3.04 km)
• Max. non-operational altitude: 15,000 feet (4.6 km)
• Acoustics:
• Sound power range (LWAd): 0 – 4.3 Bel
• Sound pressure (LpAm) (near) Range: 0 - 29.8 dB
• Primary airflow: Side to side (JL679A fanless)
• Electrical properties
• Frequency range: 50-60 Hz
• AC voltage: 100-240 volts
• Maximum current range: 4.91 A – 0.5 A Security
• UL-60950-1; IEC 60950-1;
• EN 60950-1; CAN/CSA-C22.2 No. 60950-1;
• EN 60825-1; UL 62368-1 Ed. 2;
• IEC 62368-1 Ed. 2; EN 62368-1:2014 Emissions
• VCCI-CISPR 32, Class A;
• CNS 13438;
• ICES-003 Issue 6 Class A;
• FCC CFR 47 Part 15, Class A;
• EN 55032: 2015 +AC:2016 /CISPR-32, Class A immunity
• Generic: CISPR 24 / CISPR 35
• EN: EN 55024:2010 / EN 55035:2017
• ESD: IEC 61000-4-2
• Radiated: IEC 61000-4-3
• EFT/Burst: IEC 61000-4-4
• Overvoltage: IEC 61000-4-5
• Conducted immunity: IEC 61000-4-6
• Power frequency magnetic field: IEC 61000-4-8
• Voltage dips and interruptions: IEC 61000-4-11
• Harmonics: IEC/EN 61000-3-2
• Flicker: IEC/EN 61000-3-3
